Jefftron V3 Mosfet

$75.00 $67.50

Trust Image

    This Jefftron V3 mosfet is designed to increase gun rate of fire, and battery will hold longer compared to basic wiring. It is fully integrated inside the gearbox version 3 instead of the original trigger contacts, and is compatible with Tokyo Marui standard.

    Why Do I Need A Mosfet? | What Do They Do?


    - Mosfet build on trigger contacts from SHS company
    - Easy installation inside the gearbox version 3
    - Presoldered wires allows faster and easier installation into the gun, it is long enough for all kind of weapons. Simply cut wires to the required length and attach connectors (included in package)
    - On the devices are presoldered high quality 2 black wires 1,5 qmm (AWG16) with MPPE insulation, length 400 mm to the motor and 600 mm to the battery. The blue wire 0.34 qmm (AWG22) with a length 1000 mm is used for connection anywhere on the red cable
    - In package is included 1000 mm red wire 1,5qmm (AWG16) with MPPE insulation
    - Board covered by conformal coating, it protect device against water
    - If you want to use your own wires, choose device without wiring
    - Designed for spring up to M160 (equivalent for current 75A single shot fire or 25A burst fire for max. 30s). For higher load please use Mosfet II (it is outside gearbox)
    - Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
    - No current consumption in the idle mode
    - No sparking on switch contacts
    - In auto fire mode piston stops in random position due the mechabox design
    - For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox


    You can download installation manual in English here

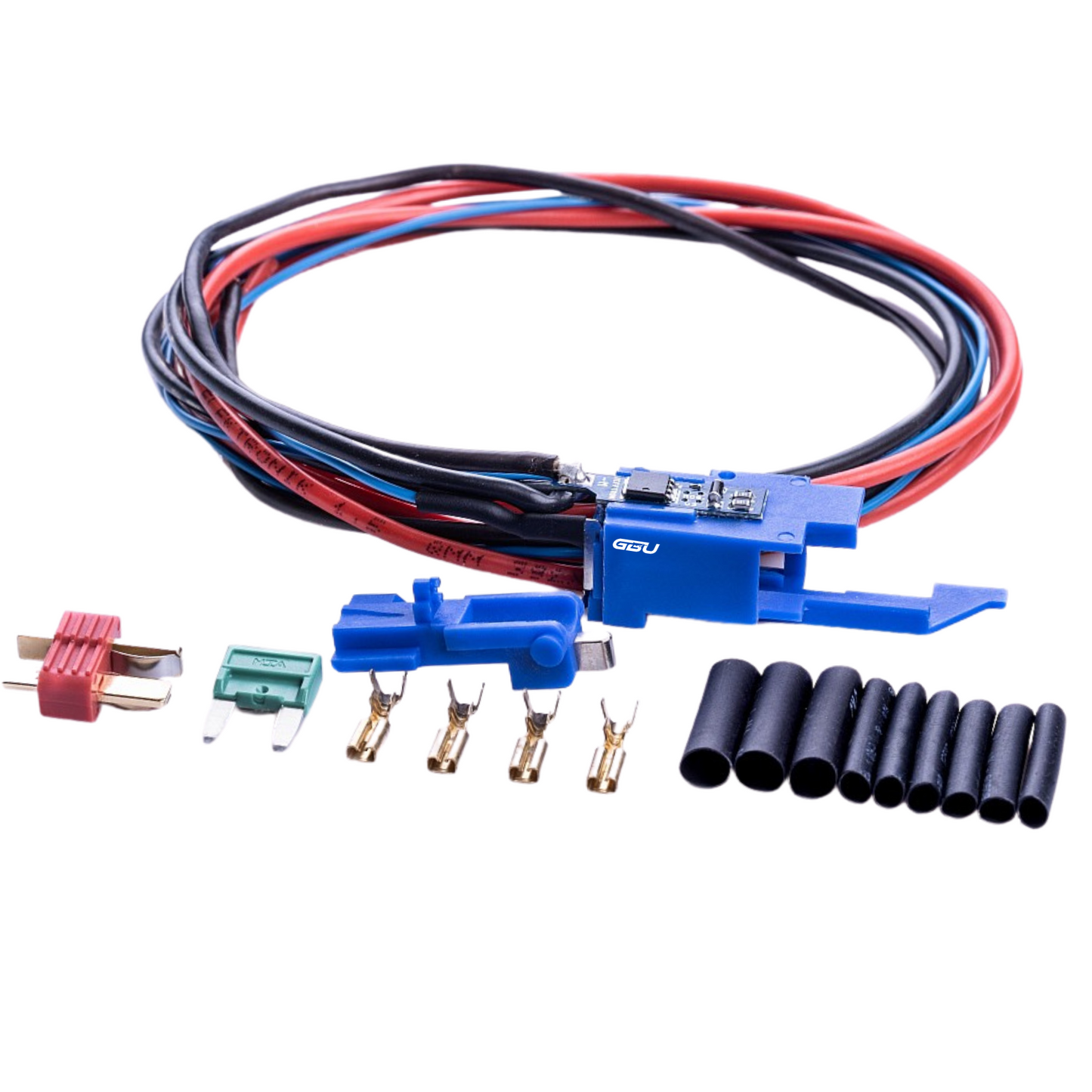

    - Mosfet on trigger contacts with wiring
    - Trigger switch
    - DeanT connector male
    - 30A Mini fuse
    - 4x Faston female 2,8mm
    - 6x Black heat shrink tube 3,2mm - length 20mm
    - 3x Black heat shrink tube 4,8mm - length 20mm
    - Installation manual in English
